Vertical Mini PC Batocera Complete Arcade Cabinet Install Kit
Transform your arcade cabinet into a retro gaming paradise with our Vertical Mini PC Complete Arcade Cabinet Install Kit! Our DIY kit includes everything you need to upgrade your cabinet and access thousands of classic games. Immerse yourself in nostalgic game play with ease and simplicity.
Mini PC Specs, Assorted Brands Will Be Sent All Will Have At Least The Below Sepcs:
- This is for a VERTICAL lcd
- Use Buttons B Y A X Start Select for the 5 Buttons
- All PC Are 100% Refurbished and Fully Tested
- I5 6th Gen Intel Processor or higher
- Will play all arcade systems and up to PS2 at full speed, PS3 is hit or miss. Depends on the processor you get, so do not expect more then PS2 and if it does play PS3 its a bonus.
- 8GB Ram
- 128GB NVME or SSD Vertical Drive Installed and Configured
- Included Drive Options: Vertical 950+ build (Mame and FBNeo)
- 4 x USB 3.2 Ports
- 1 x 3.5mm Audio Port
- 1 x Display Port

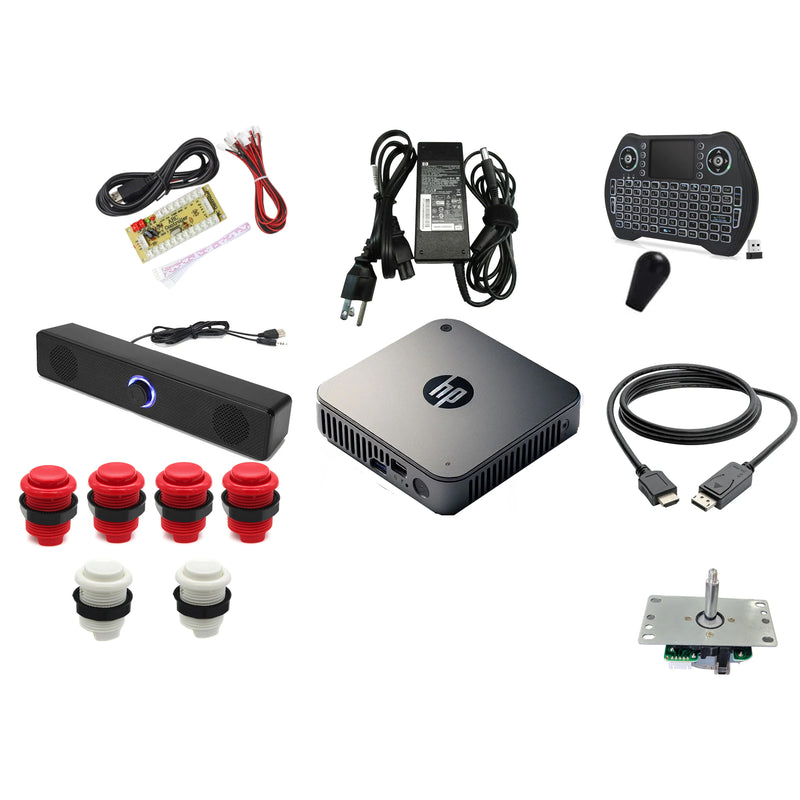

Kit Includes:
1 - Pre Configured Mini PC (?)
6 - One Piece Buttons (?)
1 - 8 Way Joysticks (?)
1 - 13" Bluetooth Sound Bar (?)
1 - Black Bat Tops (?)

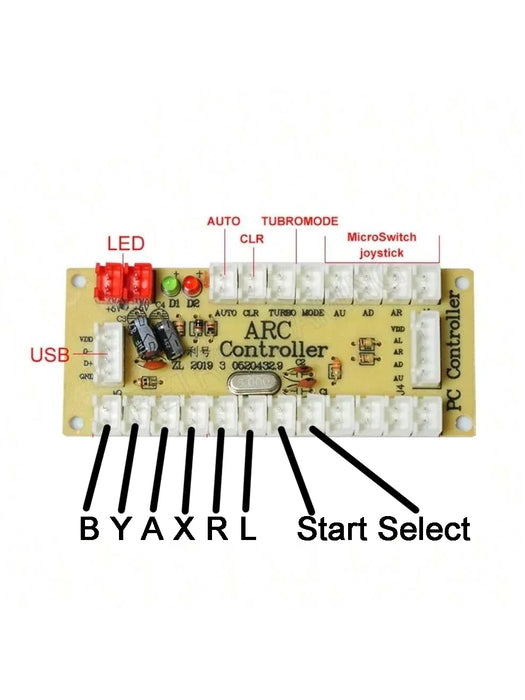

1 - Zero Delay USB Encoder Kits (?)
1 - Power Adapter for Mini PC
1 - Mini Keyboard (?)
1 - Display Port to HDMI Cable (?)
Notes:
If installing into a Arcade1up 3/4 scale machine you will need a LCD driver if you are going to reuse the factory A1U LCD.
If your Arcade1up has a light up marquee you will need these 2 items and use the existing power supply and it will stay on all the time.
5.5mm x 2.1mm Male Plug to 3.5mm x 1.35mm Female Jack Converter
5.5mm x 2.1mm Female to Female DC Power Connector Adapter Power 5.5mm x 2.1mm Female to Female DC Power Connector Adapter
Typical Install
