V2.0 LVDS To HDMI Compatible Adapter Converter Board With Cable

(3)Reviews
Original price $43.99 - Original price $43.99
Original price
$43.99
$43.99 - $43.99
Current price $43.99

V2.0 LVDS To HDMI-Compatible Adapter Board Converter +Cable Compatible with 1080P 720P Resolution


Description:
- There listing is for V2.0 Version

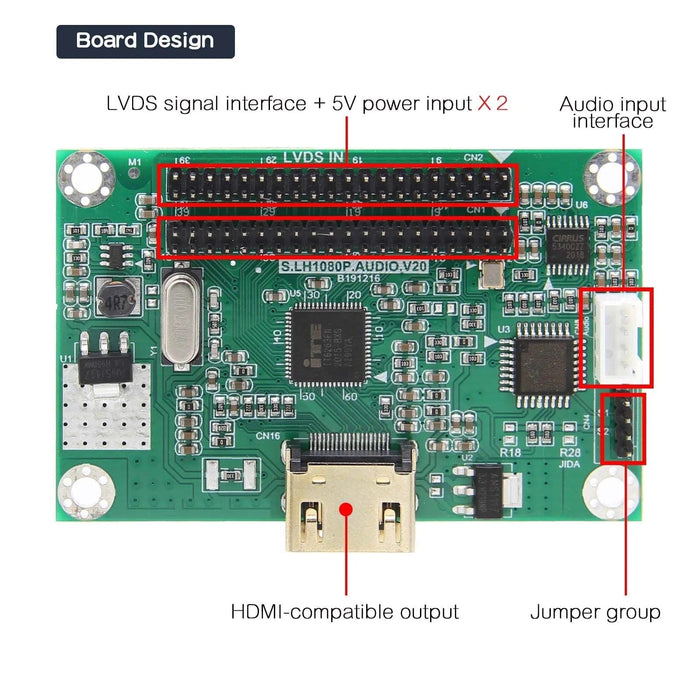

- There are two kinds of LVDS input in one board,
Double 8, Support 1080P (1920*1080P)
Single 8, Support 720P/768P/960P etc.

Note:

    The default is Dual 8 mode, can switch to Single 8 mode by shorting Pin 3 & Pin 4 (GND & S1).
    LVDS signal source: The default is VESA, please short Pin 1 & Pin 2 if you need JEIDA (S2 & GND).

Packing List
- 1 x LVDS To HDMI Adapter Board V2.0

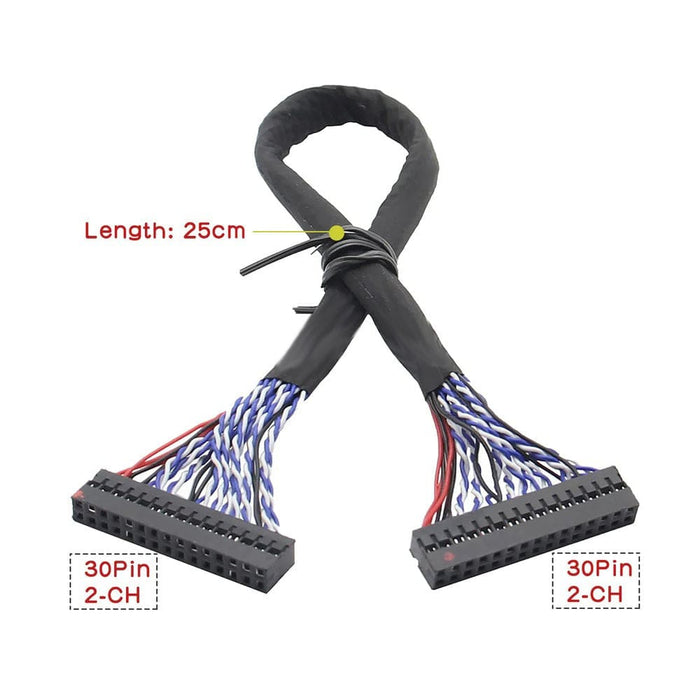

-  1 x Cable
