V1.5 LVDS To HDMI Compatible Adapter Converter Board With Cable
V1.5 LVDS To HDMI-Compatible Adapter Board Converter +Cable Compatible with 1080P 720P Resolution

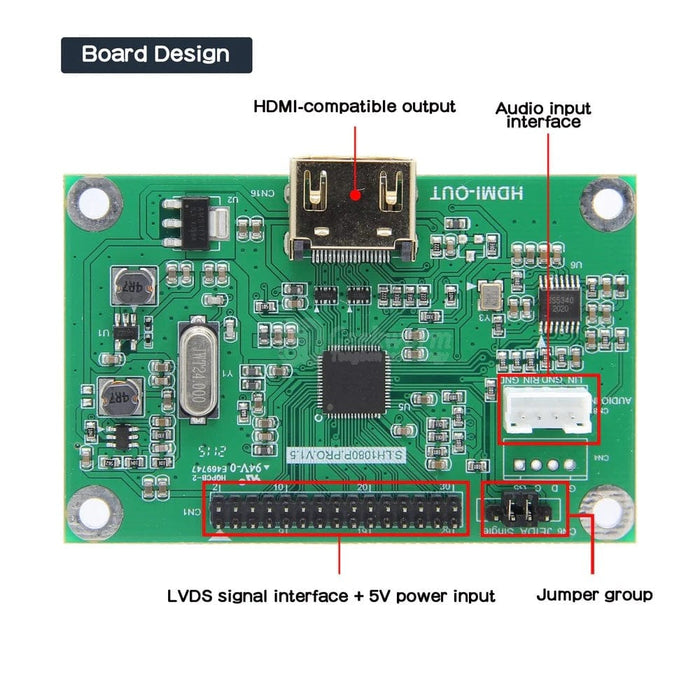

- There listing is for V1.5(new version) just with 1 LVDS connector
- There are two kinds of LVDS input in one boardï¼
Double 8, Support 1080P (1920*1080P)
Single 8, Support 720P/768P/960P etc.

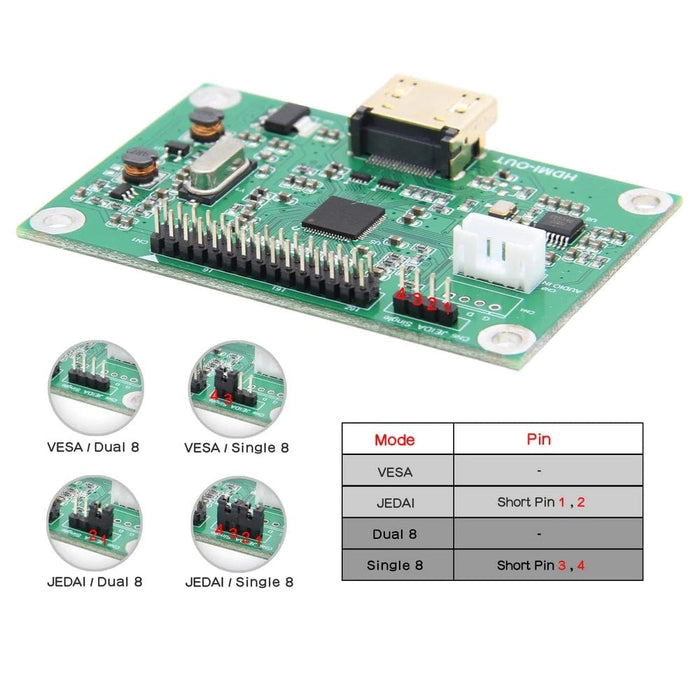

The default is Dual 8 mode, can switch to Single 8 mode by shorting Pin 3 & Pin 4 (GND & S1).
LVDS signal source: The default is VESA, please short Pin 1 & Pin 2 if you need JEIDA (S2 & GND).
- 1 x LVDS To HDMI Adapter Board V1.5

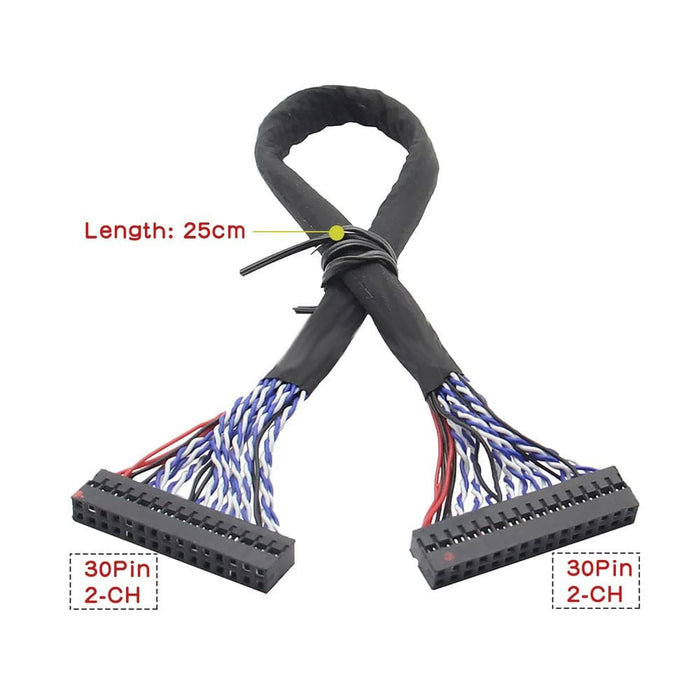

- 1 x Cable
