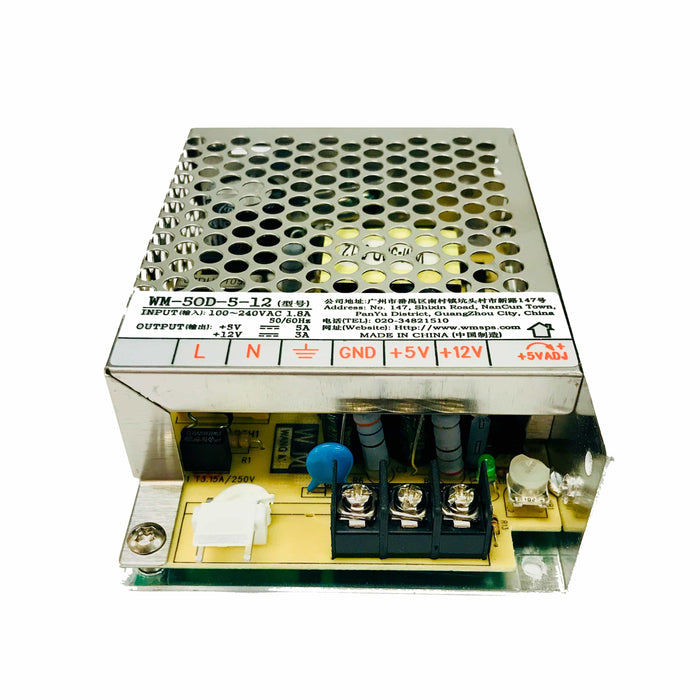

5V/5A 12V/3A Micro Switching Power Supply

SKU Arcade-177
Original price $14.99 - Original price $14.99
Original price
$14.99
$14.99 - $14.99
Current price $14.99

Features:
Universal AC input/ Full range
Low cost, high reliability
High efficiency, low working temperature
100% full load burn-in test
Low ripple & noise
Protections: short circuit/overload/over voltage

Specification:

  • Input Voltage-----------------------100~260VAC
  • 5V / 5A
  • 12V / 3A
  • Input frequency--------------------50/60Hz
  • Overload protection--------------105%--150% hiccup mode, auto-recovery
  • Over voltage protection---------115%---135% rated output voltage
  • Setup, rise, hold up time--------200ms, 50ms, 20ms
  • Withstand voltage-----------------I/P—O/P, I/P—FG: 1.5KV, 1 minute
  • Working temperature------------0-50℃ @ 100%, -10℃ @ 80%, 60℃ @ 60% load
  • Safety standards------------------UL1950, EN60950, CB, CE
  • Connection-------------------------8P/9.5mm pitch terminal block with cover

Shipping And Handling Times

All Hard Parts Are Shipped Within 24 Hours Monday Thur Friday If Purchased Before Noon CST. Custom Order Items Are Generally Shipped Within 7 Days
