3" RGB LED Pearl Trackball For USB 60 in 1 or Game Elf Arcade Machine

This Pearl trackball with RGB LEDs has multiple connection options so it can be easily used with both computers and multi-game jamma boards such as the Game-Elf and 60-in-1 PCBs.

• 3" Pearl Trackball assembly with RGB LEDs.
• Similar to Suzo Happ part #56-7000-24 but with additional connection options
• Wires with .187" spade connectors for connecting a button to change LED modes
• Wires with .187" spade connectors for connecting Right and Left mouse buttons
• LED Modes: Flash (multiple colors), Fade (through multiple colors), Green, Light Green, Lime Green, Blue, Red/Pink, Light Blue, Pale Blue, Off
• Note: LED color can *not* be controlled by software, only by adding a button and selecting a mode above
• Note: LED is powered by USB, so it is not as bright as the U-Trak with our custom LED panel. If you use this with a multi-game board that does not have a USB port for power you will need to plug the USB port into a standard USB phone charger.

Connection Options

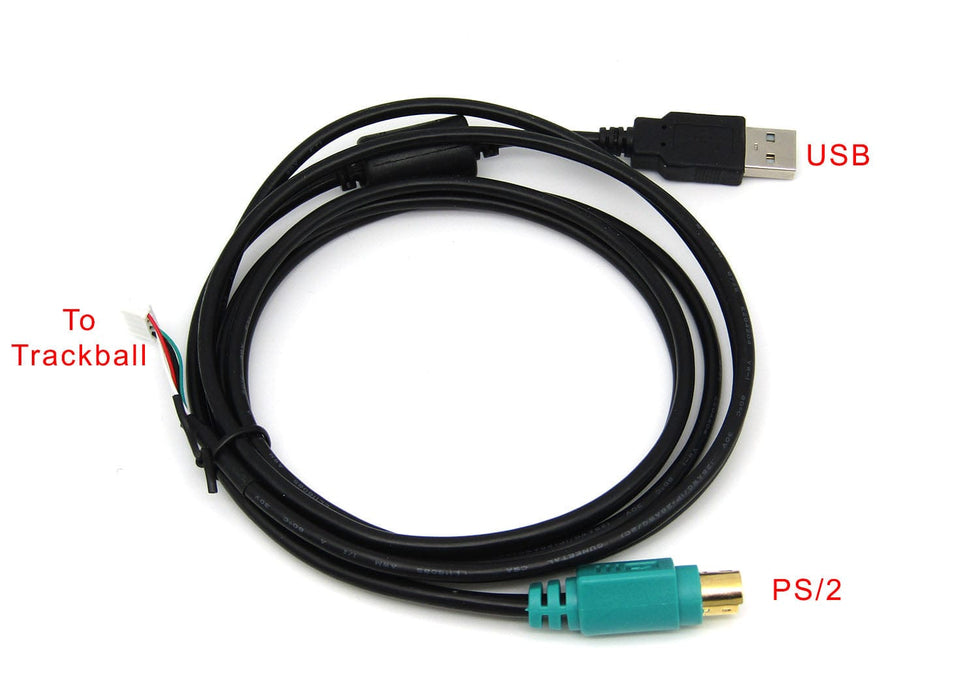

• USB or PS/2 connections to a computer, will be automatically detected as a mouse

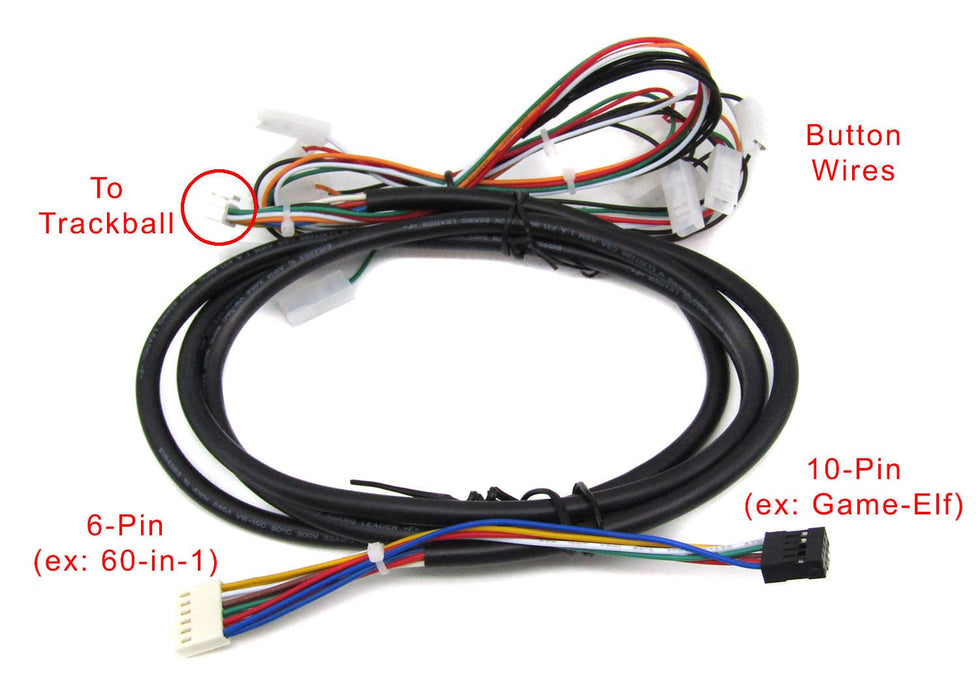

• 10-pin connector (6 pins used) for Game Elf multi-game boards
• 6-pin connector for multi-game boards such as 60-in-1

Button Wires

• Black - Ground/Common
• White - Mouse Right
• Green - Mouse Left
• Orange - LED Mode
• Red - not used

Works Great With This Trackball Plate!!
