28 Pins Full Cabinet Jamma Harness (5/6)

SKU Arcade-1
Original price $12.99 - Original price $12.99
Original price
$12.99
$12.99 - $12.99
Current price $12.99

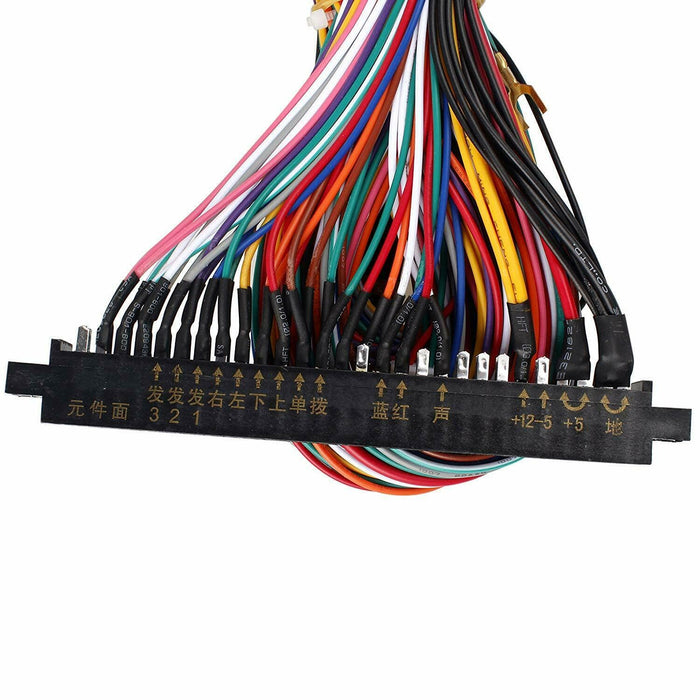

  • Jamma harness with 2x28pins 56 pin connector that can be used for standard jamma arcade cabinet (machines) and pcbs.
  • All wiring uses 22awg ,cheaper harnesses will only use 24awg or 26awg. The problem is if the resistance of wire is too high, it can cause a significant power loss before the dc voltages even reach the jamma pcb
  • Β Fast connection to power supply with attached terminal forks for all voltages (+5vdc, +12vdc, -5vdc, gnd).

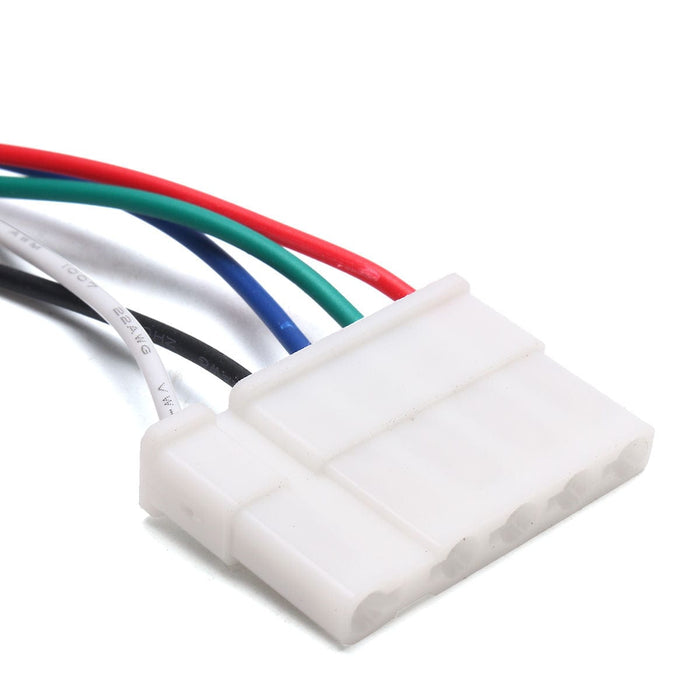

  • Video signals connect through included standard monitor connector.
  • Full grounding loop for all those joystick/button micro-switches on your control panel.
.
