2.25 Inch White Ball Arcade Game Trackball Compatible with Jamma 60 in 1 Jamma

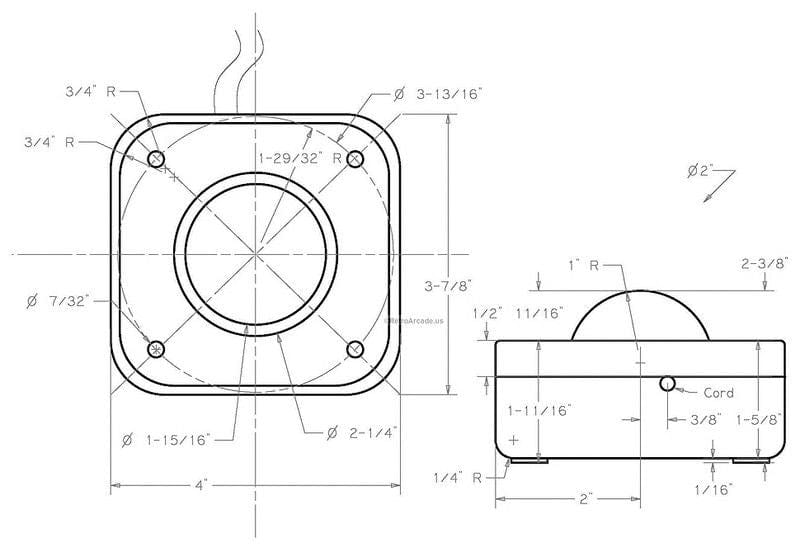

This trackball fits fine in all of the diyretroarcade control deckboards for 2.25 inch trackballs. It works well on the 60-in-1 iCade board, but shines even more on better system boards like the ArcadeSD Jamma. If you are wiring it into a Jamma harness, you will need to know the pin out and wire colors in order to figure out how to do it. Pin out is as follows:

pin 1: +5V, yellow wire
pin 2: Y-Dir, white wire
pin 3: Y-Clk, black wire
pin 4: X-Dir, green wire
pin 5: X-Clk, red wire
pin 6: Ground, blue wire

It isn't used in a ton of games but works great in the ones that it's need for. Plus, it looks great too! Read the other reviews about the proper direction to mount it under the deck. I was lucky enough to read those first but if I hadn't it probably would've been a pain. First time customer and most definitely will be back!

Great addition to 60-in-1 Vertical! Get this with a custom control deck and 60-in-1 vertical jamma kit. Works great for centipede, arkanoid, 1943 and more. Following other suggestions I mounted the wording upside down and then plug-n-play I didn't have to change a thing in settings. secure with with screws provided, but u might need washers - https://www.amazon.com/gp/product/B07HVRJW5J/ - I used this kit for the speakers and the M3 or M4 washers for this - (black finish) look great.

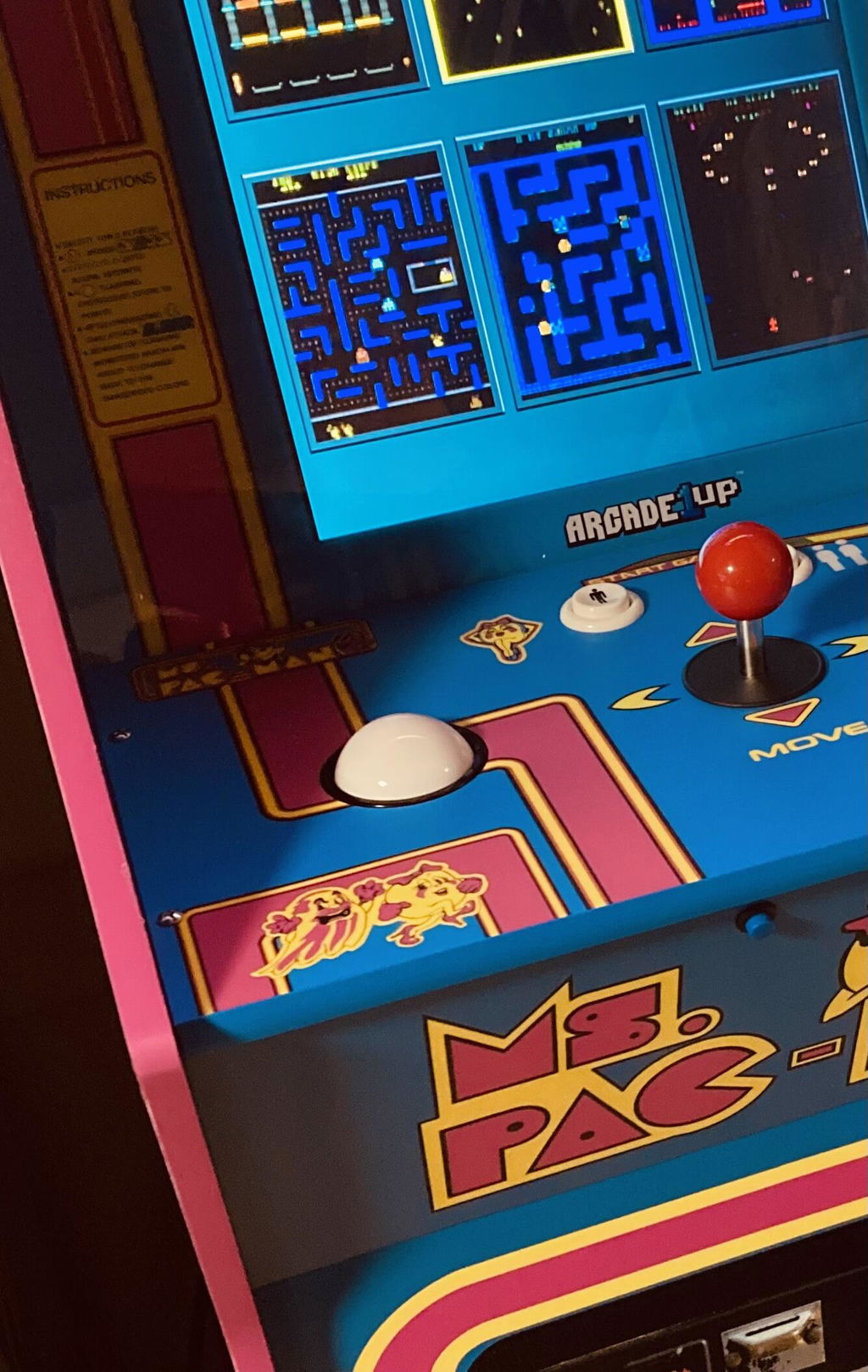

Works great with arcade1up jamma kit, i did install backwards first, the writing on top of unit should be upside down when you looking at it from top facing screen.

This is a easy to install, easy to use trackball, functions great and rolls smooth. I did install upside down at first and the screws were a bit of a problem. I couldn’t ask for more! Great product!!
