5V/16A 12V/4A Switching Power Supply

Features:
Universal AC input/ Full range
Low cost, high reliability
High efficiency, low working temperature
Built-in EMI filter
100% full load burn-in test
Low ripple & noise
Protections: short circuit/overload/over voltage

Specification:

• Input Voltage-----------------------100~260VAC
• Input frequency--------------------50/60Hz
• Inpush current----------------------cold start, 20A at 100V, 40A at 260V
• Overload protection--------------105%--150% hiccup mode, auto-recovery
• Over voltage protection---------115%---135% rated output voltage
• Setup, rise, hold up time--------200ms, 50ms, 20ms
• Withstand voltage-----------------I/P—O/P, I/P—FG: 1.5KV, 1 minute
• Working temperature------------0-50℃ @ 100%, -10℃ @ 80%, 60℃ @ 60% load
• Safety standards------------------UL1950, EN60950, CB, CE

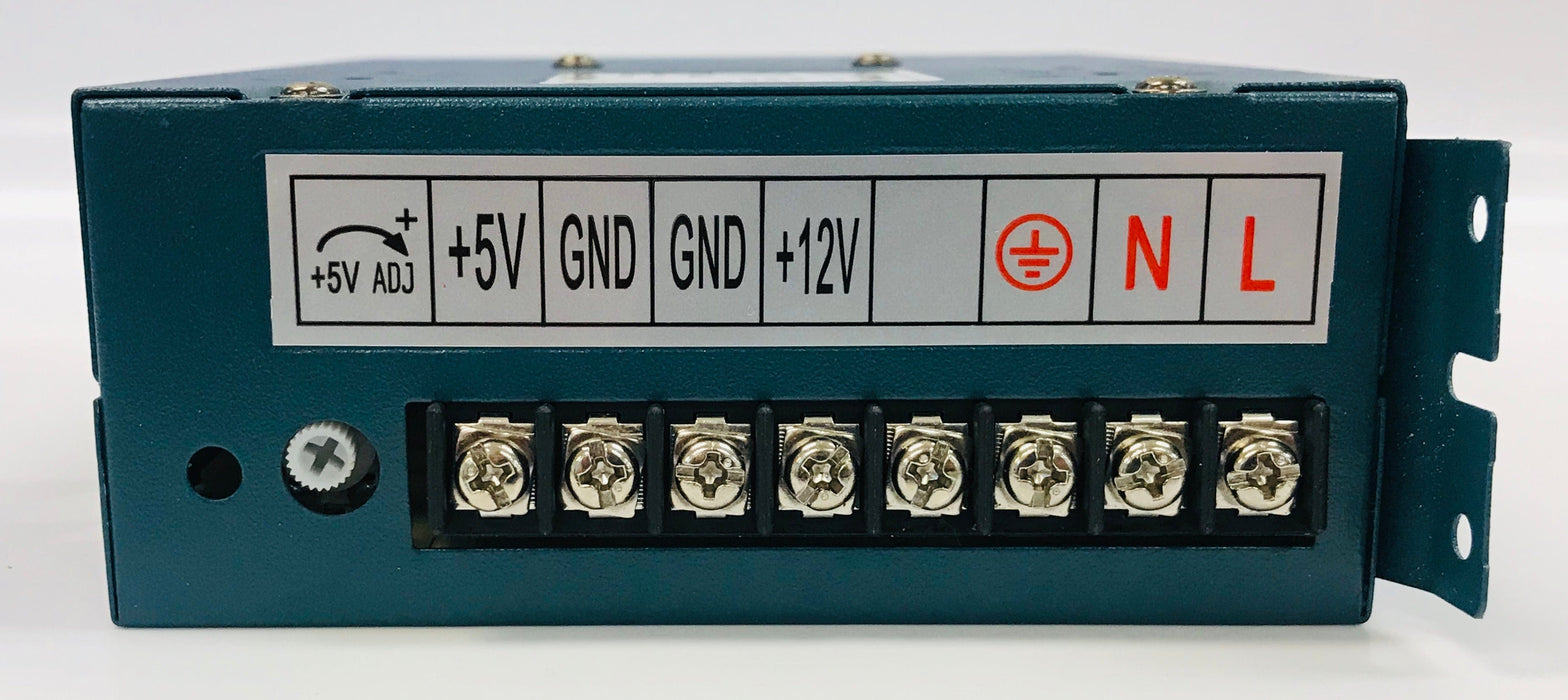

• Connection-------------------------8P/9.5mm pitch terminal block with cover
